Quick Details

  • Use: Truck Trailer
  • Type: Semi-Trailer
  • Material: Steel
  • Certification: BV SGS ASME ADR CCC ISO
  • Size: 12980*2500*3900
  • OEM No.: ODM
  • Max Payload: 60000
  • Place of Origin: Hubei, China (Mainland)
  • Brand Name: CLW
  • Model Number: CLW9403GRY
  • Axle brand: Optional: BPW ,FUWA or as customer's request
  • pump: per as your request
  • suspension: optional: air or mechanical suspension
  • raw material of the tanker: carbon steel, stainless steel, aluminium alloy

Packaging & Delivery

Packaging Details Nude packaging, RO-RO,etc.
Delivery Time about 5days after the deposit



Product Description

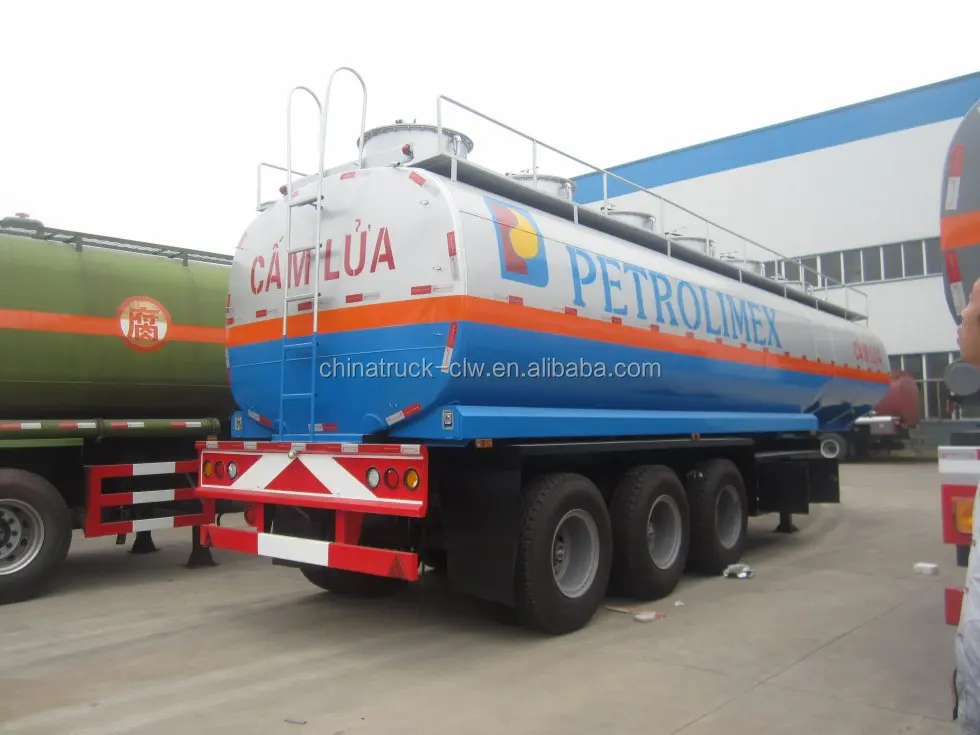

Factory direct supply cheap tri axle Steel suspension carbon steel  42m3 diesel fuel tank trailer for hot sale





Main parameter for Factory direct supply cheap tri axle Steel suspension carbon steel  42m3 diesel fuel tank trailer for hot sale



General
Overall Dimension12980mm*2500mm*3820mm(Dimensions can be designed)
Volume42cbm(volume can be optional)



Total Weight

11800kgPay Load40ton

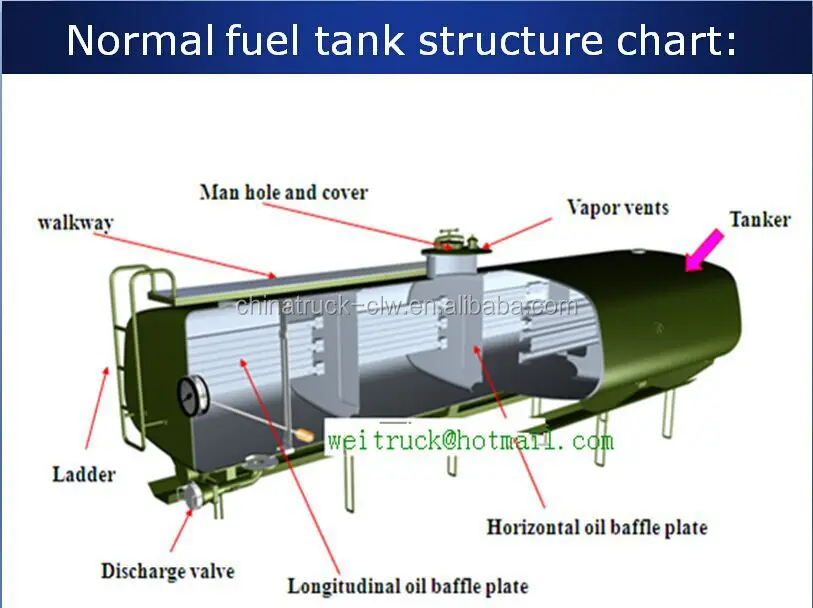

Tank Body
Tank shell materialQ235A steelEnd plateQ235A steel
Thickness:5mmThickness:6mm
Anti-Wave BoardCorrugated shapePartition PlateThickness:4mm
Thickness:4mm
ManholeAluminum manholeBottom valveButterfly type
Shape of TankEllipseCompartmentsCan be adjustable based
 on needs
Discharge ValveEach compartment with a 3” ball-type valveWalkwayAnti-skid plate
Master SwitchesHand operated switchWarehouse Hand operated switch
Switches
Running Gear
SuspensionTri-axle 8-pcs leaf spring suspension with equalizer beam
(Air suspension)
Tires10.00R20/8.25R20/1100R20, 12units
AxlesFUWA axle, 13T capacity(BPW,YORK,SAF optional)
BrakesDual lines pneumatic brake system, WABCO Emergency
Relay Valve; T30/30+T30 air chamber; parking brake
Under Frame
Main BeamQ345B steel,Height 500, upper 18mm,
lower 18mm. Mid web 10mm
Cross BeamMild Alloy Q235
King PinSize: 50# (2'') or 90#(3.5’’); Type: welded or assembled
Landing GearSingle side operation or double side operation,
Static capacity 28Ton
Appendix1 tool box, length 1.0m
Electrical & Paint
 ElectricalRear light, rear reflector, turn indicative light, side reflector,
fog lamp, number plate light
Lights & Reflectors24V, 7 lines
WiringISO standard air connector, 24V 7 pin plug socket
Air/Elec. ConnectorColor upon request
Paint According to your requirements








Fuel tanker series

1 Applied carbon steel sheet Q235-A;stainless steel;aluminium alloy  that in accordance with the international standard. Thickness is 5-10mm.

2 Apply the famous pump.

3 The main parts implements automatic welding, while the accessories apply carbon dioxide welding to ensure the tank in good performance.

4 Sub crossbeam apply rectangle steel sheet that thickness more than 5mm, stick out in one time.

5 Fire extinguisher replaced on the back of the truck for the emergency.

6 Painting held more tolerance and coherence, can make sure the tank in good situation more than 10 years.

7 According to customer’s needs:

A> The pump can be designed to pump in and out throw meter, or not through meter, self-flow through or not through meter.

B> The tank can be designed as a single compartment or several compartments.

C> You can choose to install heating pipes, insulation layer. The Insulation material is generally 50-100 mm thickness, insulation can be used rockwool, glasswool, polyurethane foam, aluminum silicate. The cladding can be used 1.8-2mm thick white (RAL9003) glass reinforced plastic, 1.2mm cold carbon steel, 1.00mm stainless steel sub-mirror or matter board.

D> At the end or side of tank, It can be installed 1-3 self-flow valve.

E> You can chosse the type of the inlet and outlet (Europ standard or normally standard).

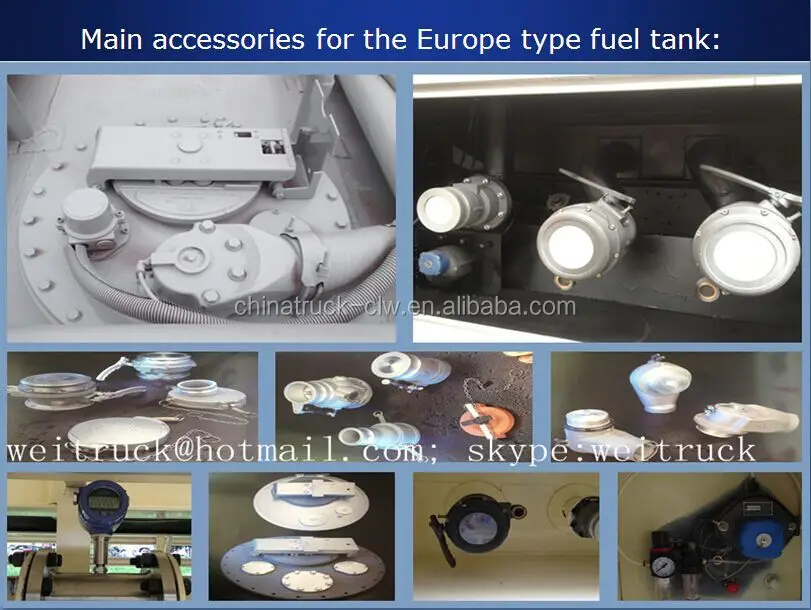

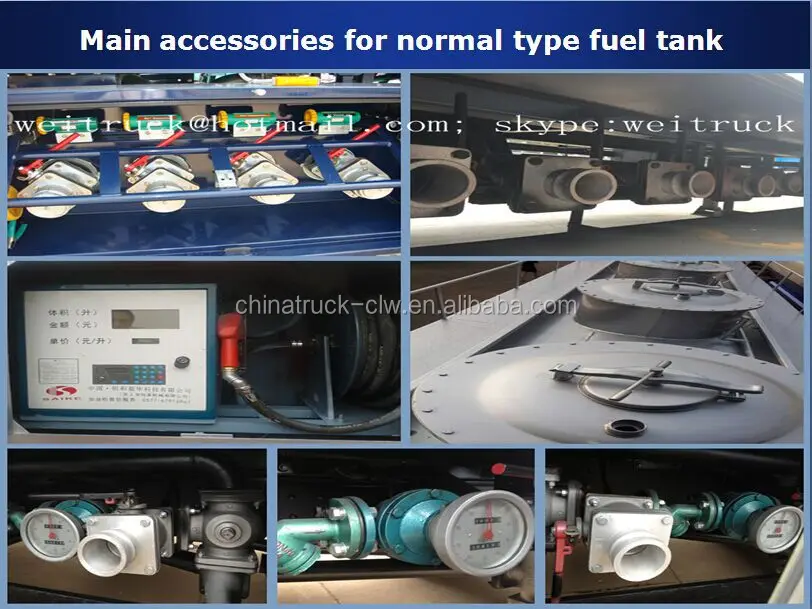

F>Main accessories for your Option:



Flow meter  /  gallon meter,oil pump,Reel hose,Compartments,Aluminum ally man hole,



Stainless steel man hole,Eurostand Aluminum alloy subsea valve,Bottom loading valve.



Electrostatic reels,Anti-spill alarm system.
